Oring Networking - In-Vehicle Surveillance


Construct Reliable & Efficient Network Monitoring Systems

IP surveillance technologies are on the rise in the video surveillance industry, thanks to convenience and costeffectiveness of Ethernet networks. Hence IP surveillance systems can be implemented on buses for passenger safety, bus fleet management, or traffic monitoring, allowing the driver and the transportation control center to get real-time driving status at any time. Additionally, wireless AP can be implemented on buses to provide passengers with wireless internet service. For use on moving vehicles, networking equipment must adapt to tough conditions on moving vehicles. ORing products, with ruggedized design and industrial-grade wide temperature tolerance, ensure vehicle network reliability and thus are the best choice for vehicle surveillance and network systems.

Key Products

IGPS-1080-24V IGPS-1080-24V (#07642)
8-port unmanaged Gigabit PoE Ethernet Switch
• 8x10/100/1000Base-T(X) PoE (P.S.E.) ports; up to 30 Watts per port and totally 120Watts; dual 24VDC power inputs
• Rigid IP-30 housing design
• -40~70°C operating temperature range
TGAR-W1061+-4G-M12 TGAR-W1061+-4G-M12 (#07893)
Industrial EN50155 IEEE 802.11 a/b/g/n 4G LTE Cellular Router with 1x10/100/1000Base-T(X) PoE P.D., IP-67
• EN50155-compliant wireless access point for rolling stock application
• High Speed Air Connectivity: WLAN interface supports up to 300Mbps link speed
• Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X authentication supported

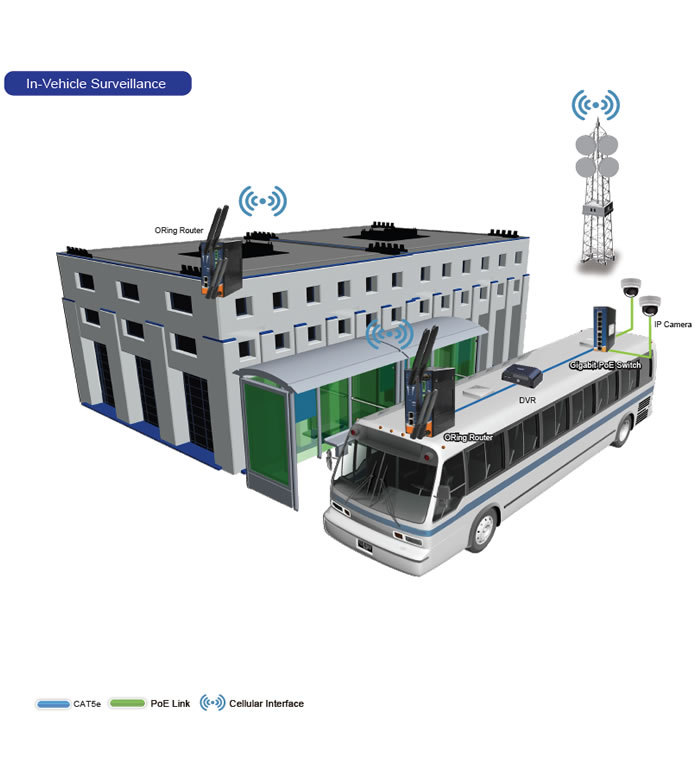

In-Vehicle Surveillance
